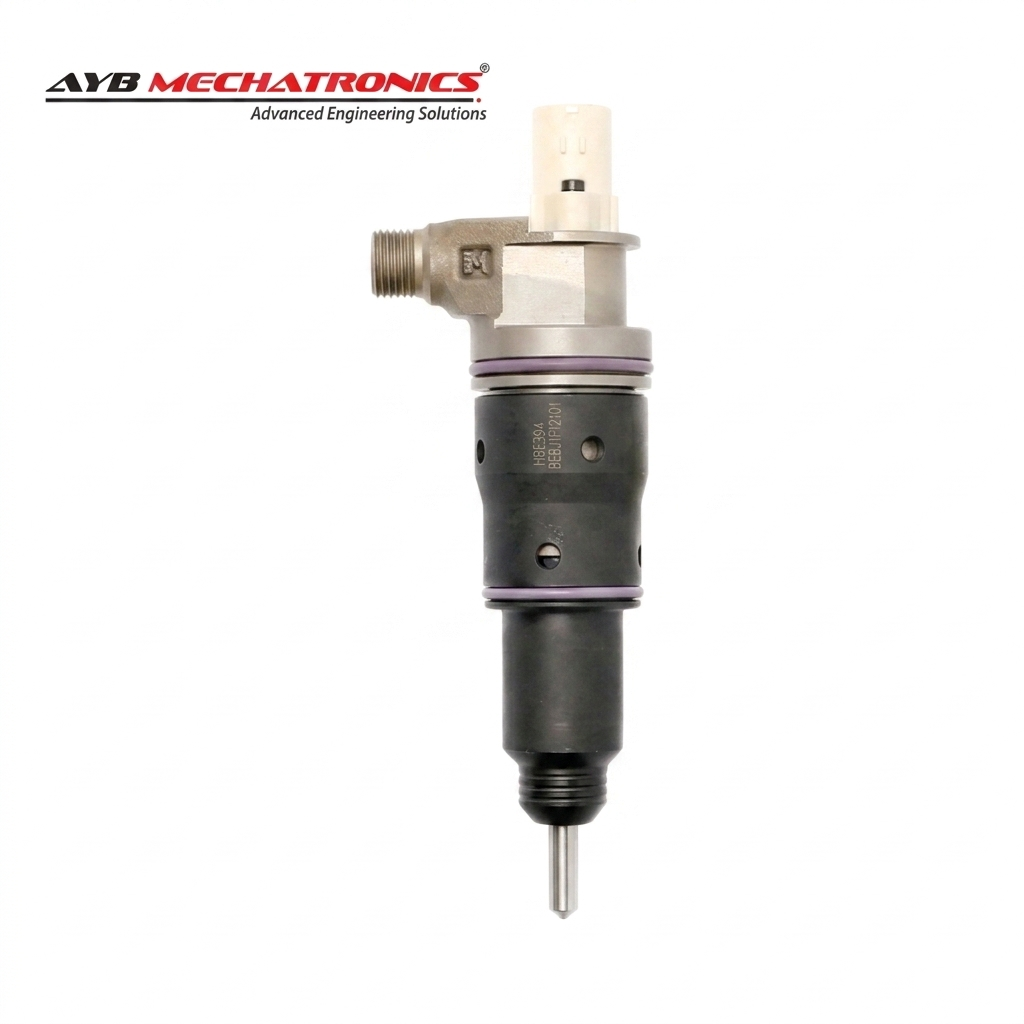

Volvo Injector Adaptation Explained: Calibration and Engine Optimization | Ayb Mechatronics

Modern Volvo diesel engines are designed to deliver exceptional performance, fuel efficiency, and emissions control. A key factor behind this precision is Volvo injector adaptation, a calibration process that allows the engine control module (ECM) to recognize and optimize injector operation. While many technicians focus on injector replacement and diagnostics, adaptation is often the step that determines whether an engine performs as intended after service.

When injector adaptation is completed correctly, fuel delivery becomes more precise, engine operation becomes smoother, and overall efficiency improves. However, when adaptation is skipped or performed incorrectly, operators may experience rough idle, poor fuel economy, recurring fault codes, and reduced engine performance.

At Ayb Mechatronics, injector testing and calibration are critical parts of maintaining long-term engine reliability. This guide explains what Volvo injector adaptation is, why it matters, how it works, and how proper calibration supports engine optimization.

What Is Volvo Injector Adaptation?

Volvo injector adaptation is the process of programming or calibrating injector-specific data into the engine control module. This allows the ECM to compensate for slight manufacturing differences between injectors and optimize fuel delivery accordingly.

Why Adaptation Is Necessary

Although injectors are manufactured to strict tolerances, no two injectors are perfectly identical.

Small variations may affect:

• Fuel quantity delivery

• Injection timing

• Response characteristics

• Combustion efficiency

Adaptation ensures that the ECM recognizes these characteristics and adjusts engine operation accordingly.

How Adaptation Supports Engine Performance

When calibration data is correctly entered, the engine can achieve:

• Improved fuel economy

• Smoother idle quality

• Better throttle response

• Reduced emissions

• More consistent power output

This is why adaptation is considered a critical step after injector service.

Which Volvo Engines Require Injector Adaptation?

Injector adaptation is commonly associated with modern Volvo diesel engines, including those using:

• D12 Volvo injector systems

• D13 Volvo injector systems

• Other electronically controlled Volvo fuel injection platforms

Specific procedures may vary depending on engine model and software version.

How Volvo Injector Adaptation Works

Understanding the process helps technicians appreciate its importance.

Injector Calibration Values

Each injector may have unique calibration information that must be communicated to the ECM.

These values help the system determine how the injector behaves under different operating conditions.

ECM Compensation Strategies

The ECM uses adaptation data to:

• Optimize injection timing

• Adjust fuel quantity

• Balance cylinder performance

• Improve combustion quality

Without accurate adaptation data, fuel delivery may become less precise.

Continuous Learning Functions

Some Volvo engine management systems also incorporate adaptive learning strategies.

How does this help?

The ECM can make ongoing adjustments based on engine operating conditions and performance feedback.

Why Volvo Injector Adaptation Is Important

Many operators underestimate the impact adaptation has on engine performance.

Improved Fuel Efficiency

Fuel economy depends heavily on precise fuel delivery.

Proper adaptation helps ensure that each cylinder receives the correct amount of fuel under varying load conditions.

Enhanced Engine Reliability

Balanced fuel delivery reduces stress on engine components and supports consistent combustion.

This contributes to long-term engine durability.

Better Emissions Performance

Modern emissions systems rely on accurate fuel injection control.

Adaptation helps maintain emissions compliance and reduce unnecessary exhaust output.

Reduced Fault Codes

Correct calibration can prevent injector-related diagnostic warnings and recurring system errors.

When Volvo Injector Adaptation Is Required

Adaptation is not necessary during every maintenance procedure.

After Injector Replacement

The most common situation requiring adaptation is injector replacement.

Whenever a new injector is installed, calibration data should be entered according to Volvo procedures.

Following ECM Updates

Certain software updates may require injector adaptation to ensure compatibility between injector data and engine control strategies.

After Major Fuel System Repairs

Some fuel system repairs may affect injector operation and require recalibration.

When Performance Problems Occur

In some cases, adaptation procedures may be used as part of a troubleshooting strategy when injector-related performance issues are present.

Symptoms of Incorrect Injector Adaptation

Failure to perform adaptation properly can create a variety of operational problems.

Rough Idle

One of the most common symptoms is unstable idle quality.

Drivers may notice:

• Engine vibration

• Uneven operation

• Idle fluctuations

Increased Fuel Consumption

Why does fuel economy decline when adaptation is incorrect?

Because the ECM may not accurately compensate for injector characteristics, resulting in inefficient combustion.

Loss of Power

Improper calibration can affect fuel delivery timing and quantity, reducing engine responsiveness.

Persistent Fault Codes

A Volvo injector fault code may remain active even after injector replacement if adaptation has not been completed correctly.

Volvo Injector Fault Codes and Adaptation

Injector adaptation and diagnostics often work together.

Common Fault Code Scenarios

A Volvo injector fault code may appear due to:

• Missing adaptation data

• Incorrect calibration values

• Injector communication issues

• Fuel delivery irregularities

Why Diagnosis Matters

Fault codes do not always indicate injector failure.

In some cases, the root cause may simply involve adaptation errors.

Professional Verification Procedures

Technicians should verify:

1. Injector installation quality

2. Calibration data accuracy

3. ECM programming status

4. Fuel system condition

5. Cylinder balance performance

A structured diagnostic process improves repair accuracy.

Injector Adaptation in D12 and D13 Volvo Engines

Different Volvo engine platforms may have unique adaptation requirements.

D12 Volvo Injector Adaptation

The D12 Volvo injector system relies on accurate calibration to maintain fuel delivery consistency and engine performance.

Proper adaptation helps optimize combustion and reduce operating costs.

D13 Volvo Injector Adaptation

The D13 Volvo injector platform incorporates more advanced fuel management and emissions control technologies.

As a result, adaptation becomes even more critical for achieving maximum efficiency.

Key Differences

Feature	D12 Volvo Injector	D13 Volvo Injector
Electronic Integration	Moderate	Advanced
Emissions Control	Standard	Enhanced
Adaptation Complexity	Moderate	Higher
Diagnostic Capability	Good	Advanced

Understanding these differences helps technicians follow the correct service procedures.

Volvo Injector Cups and Their Role in Fuel System Performance

Adaptation alone cannot solve all injector-related problems.

What Are Volvo Injector Cups?

Volvo injector cups provide sealing and positioning support for injectors within the cylinder head.

They help separate fuel and coolant systems while maintaining injector stability.

Symptoms of Injector Cup Problems

Common indicators include:

• Coolant contamination

• Fuel contamination

• Hard starting

• White smoke

• Recurring performance issues

Volvo Injector Cup Removal Tool

Servicing injector cups often requires a specialized Volvo injector cup removal tool.

Why use the correct tool?

Because improper removal methods can damage the cylinder head and increase repair costs.

Volvo Injector Bolt and Installation Considerations

Injector adaptation cannot compensate for poor installation practices.

Importance of the Volvo Injector Bolt

The Volvo injector bolt secures the injector assembly and helps maintain proper positioning.

Technicians should:

• Follow torque specifications

• Inspect bolt condition

• Replace hardware when recommended

• Verify proper seating

Why Installation Quality Matters

Improper installation may cause:

• Fuel leakage

• Compression loss

• Poor injector performance

• Recurring fault codes

Correct installation is essential before adaptation can be successful.

Common Mistakes During Volvo Injector Adaptation

Avoiding these errors helps improve engine performance and reliability.

Skipping Adaptation Completely

Some technicians assume injector replacement alone is sufficient.

In many cases, this leads to avoidable performance problems.

Entering Incorrect Calibration Data

Incorrect injector coding can create fuel delivery inconsistencies.

Ignoring Related System Issues

Adaptation cannot correct:

• Fuel contamination

• Electrical faults

• Injector cup failures

• Mechanical engine problems

These issues must be addressed separately.

Failing to Verify Results

Adaptation should always be followed by performance verification and diagnostic checks.

Volvo AdBlue Injector Replacement vs Injector Adaptation

These procedures involve different systems.

Understanding the Difference

Fuel injectors deliver diesel fuel into the engine.

AdBlue injectors deliver diesel exhaust fluid (DEF) into the emissions system.

Volvo AdBlue Injector Replacement

A Volvo AdBlue injector replacement addresses:

• SCR system faults

• DEF dosing issues

• Emissions warnings

• Engine derate conditions

It does not replace the need for fuel injector adaptation.

Volvo Injector Adaptation Checklist

Use this checklist to ensure proper calibration and optimization.

Adaptation Checklist

• Verify injector installation quality

• Confirm correct injector part numbers

• Enter calibration data accurately

• Check ECM software status

• Inspect fuel system condition

• Verify injector bolt torque specifications

• Perform adaptation procedure

• Clear diagnostic codes

• Conduct engine performance testing

• Confirm fuel system operation

A systematic process helps ensure successful adaptation.

The Ayb Mechatronics Approach to Injector Calibration

What separates successful injector service from recurring performance issues?

The answer is accurate diagnostics combined with proper calibration.

Data-Driven Injector Evaluation

At Ayb Mechatronics, injector testing helps determine whether calibration, repair, or replacement is the most effective solution.

Precision Calibration Procedures

Proper adaptation ensures injectors operate according to Volvo specifications.

Supporting Long-Term Engine Optimization

The Ayb Mechatronics methodology focuses on:

• Improved fuel efficiency

• Reduced downtime

• Enhanced reliability

• Accurate diagnostics

• Long-term engine performance

These benefits help operators maximize vehicle productivity and reduce operating costs.

FAQ

What is Volvo injector adaptation?

Volvo injector adaptation is the process of calibrating injector-specific data within the ECM to optimize fuel delivery and engine performance.

Why is injector adaptation necessary?

Adaptation compensates for slight manufacturing differences between injectors and helps ensure accurate fuel delivery.

When should Volvo injector adaptation be performed?

It is commonly required after injector replacement, certain ECM updates, and some fuel system repairs.

Can incorrect adaptation affect fuel economy?

Yes. Improper adaptation may reduce combustion efficiency, resulting in higher fuel consumption and lower performance.

Can adaptation resolve a Volvo injector fault code?

In some cases, yes. If the fault code is related to missing or incorrect calibration data, proper adaptation may resolve the issue.

Are adaptation procedures different for D12 and D13 engines?

Yes. D13 Volvo injector systems generally involve more advanced control strategies and may require more sophisticated calibration procedures than D12 Volvo injector systems.

What role do injector cups play in injector performance?

Volvo injector cups support injector sealing and positioning. Damaged cups can affect fuel system integrity and overall engine performance.

Is Volvo AdBlue injector replacement the same as injector adaptation?

No. Volvo AdBlue injector replacement addresses emissions system components, while injector adaptation relates to fuel injector calibration.
