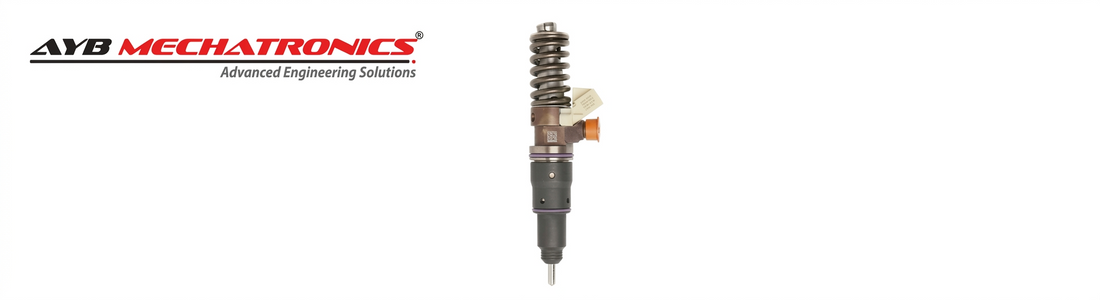

Ayb Mechatronics Guide to Volvo Injector Cup Removal Tools and Procedures

The Volvo injector cup removal tool is an essential piece of equipment for technicians working on Volvo diesel engines. While injectors often receive the most attention during fuel system repairs, injector cups play an equally important role in maintaining proper sealing, fuel delivery integrity, and long-term engine reliability.

When injector cups become worn, damaged, or contaminated, they may need to be removed and replaced. Because these components are tightly fitted into the cylinder head, proper removal requires specialized tools and procedures. Attempting to remove injector cups without a dedicated Volvo injector cup removal tool can increase the risk of cylinder head damage, improper installation, and costly repairs.

At Ayb Mechatronics, we emphasize precision diagnostics and proper service techniques to help operators maximize engine reliability and minimize downtime. This comprehensive guide explains how injector cups function, why removal tools matter, and the best procedures for servicing Volvo injector cups safely and effectively.

Understanding Volvo Injector Cups

Before discussing removal procedures, it is important to understand the purpose of injector cups within the fuel system.

What Are Volvo Injector Cups?

Volvo injector cups are specially designed sleeves installed in the cylinder head that provide a secure seating surface for injectors.

Their primary functions include:

• Supporting injector positioning

• Creating reliable sealing surfaces

• Separating fuel and coolant passages

• Protecting cylinder head integrity

Although small in size, injector cups play a critical role in overall fuel system performance.

Why Injector Cups Are Important

Many technicians focus primarily on injectors, but injector cups can also contribute to fuel system problems.

Why are injector cups so important?

Because any failure in sealing can allow fuel and coolant to mix, creating serious engine performance and reliability issues.

Which Volvo Engines Use Injector Cups?

Injector cups are commonly found in various Volvo heavy-duty diesel engines, including those equipped with:

• D12 Volvo injector systems

• D13 Volvo injector systems

• Other Volvo commercial diesel platforms

Proper service procedures may vary depending on engine generation and configuration.

What Is a Volvo Injector Cup Removal Tool?

A Volvo injector cup removal tool is a specialized service tool designed to safely remove injector cups from the cylinder head.

Purpose of the Tool

Injector cups often become difficult to remove due to:

• Heat cycles

• Corrosion

• Deposits

• Long service intervals

The removal tool provides controlled extraction force while minimizing the risk of damage.

Why Specialized Tools Matter

Some technicians attempt injector cup removal using improvised methods.

Common risks include:

• Cylinder head damage

• Distorted injector cup bores

• Broken injector cups

• Increased repair costs

Using the correct tool significantly improves repair outcomes.

How the Tool Works

Most injector cup removal tools use a threaded extraction mechanism that attaches securely to the injector cup.

Controlled pulling force is then applied to remove the cup safely and efficiently.

Common Reasons for Injector Cup Removal

Injector cups are not routine maintenance items, but several situations may require removal.

Fuel and Coolant Contamination

One of the most common reasons for injector cup replacement is contamination between fuel and coolant systems.

Symptoms may include:

• Fuel in coolant

• Coolant in fuel

• Reduced engine performance

• Increased maintenance concerns

Injector Replacement Procedures

Injector cup inspection is often recommended when injectors are removed for service.

This allows technicians to identify hidden sealing problems before reassembly.

Cylinder Head Repairs

Major engine repairs frequently involve injector cup removal as part of cylinder head servicing.

Persistent Injector-Related Problems

Recurring injector concerns sometimes originate from injector cup failures rather than injector defects.

Proper diagnosis helps identify the true source of the problem.

Step-by-Step Volvo Injector Cup Removal Procedure

Following proper procedures helps prevent costly mistakes.

Step 1: Prepare the Engine

Before beginning service:

• Disconnect electrical power

• Clean the work area

• Remove necessary engine covers

• Verify repair requirements

Preparation reduces contamination risks and improves safety.

Step 2: Remove the Injector

The injector must be removed before accessing the injector cup.

During removal, inspect:

• Injector condition

• Seals

• Fuel connections

• Mounting hardware

Step 3: Install the Volvo Injector Cup Removal Tool

Attach the Volvo injector cup removal tool according to manufacturer instructions.

Ensure:

• Proper engagement

• Secure attachment

• Correct alignment

Incorrect installation may damage the injector cup or cylinder head.

Step 4: Extract the Injector Cup

Apply extraction force gradually and evenly.

How should the tool be operated?

Slow, controlled extraction reduces stress on surrounding components and minimizes damage risk.

Step 5: Inspect the Injector Cup Bore

After removal, inspect the cylinder head carefully.

Look for:

• Corrosion

• Cracks

• Wear

• Surface damage

• Debris accumulation

A thorough inspection supports successful installation of the replacement cup.

Benefits of Using a Volvo Injector Cup Removal Tool

The proper tool offers significant advantages during injector cup service.

Reduced Risk of Cylinder Head Damage

The greatest benefit is protection of expensive engine components.

Cylinder head repairs are often substantially more costly than injector cup replacement.

Improved Service Efficiency

Specialized tools reduce labor time and improve repair consistency.

This helps minimize vehicle downtime and maintenance costs.

Better Repair Accuracy

Controlled extraction helps preserve sealing surfaces and component alignment.

This contributes to long-term reliability after repairs are completed.

Common Symptoms of Injector Cup Failure

Recognizing injector cup problems early can prevent major engine damage.

Coolant Contamination

Fuel contamination within the cooling system is a common warning sign.

Fuel Contamination

Coolant entering the fuel system can negatively affect injector performance and combustion quality.

White Exhaust Smoke

Why does injector cup failure sometimes cause white smoke?

Contamination may alter combustion conditions and create visible exhaust changes.

Hard Starting

Injector cup issues can contribute to difficult starting and inconsistent engine operation.

The Relationship Between Injector Cups and Injector Performance

Injector cups directly affect fuel system reliability.

D12 Volvo Injector Applications

The D12 Volvo injector relies on properly sealed injector cups to maintain fuel system integrity.

Damaged cups can contribute to injector performance issues and fuel contamination.

D13 Volvo Injector Applications

The D13 Volvo injector system incorporates advanced fuel management technology that depends on stable injector positioning and sealing.

Injector cup condition remains an important factor in overall performance.

Why Proper Installation Is Critical

Incorrect cup installation may result in:

• Fuel leakage

• Coolant leakage

• Reduced combustion efficiency

• Recurring maintenance problems

Following correct procedures helps avoid these issues.

Volvo Injector Fault Codes and Injector Cup Problems

Injector cup issues can sometimes mimic injector failures.

Can Injector Cups Trigger Fault Codes?

Yes. A Volvo injector fault code may appear when injector cup failures affect combustion quality or fuel delivery consistency.

Diagnostic Challenges

Many symptoms associated with injector cup failure resemble those caused by:

• Worn injectors

• Fuel contamination

• Electrical faults

• Fuel pressure problems

Professional diagnostics help distinguish between these possibilities.

Why Accurate Diagnosis Matters

Replacing injectors without addressing injector cup problems may fail to resolve the underlying issue.

Comprehensive testing improves repair accuracy.

Components to Inspect During Injector Cup Service

Injector cup removal creates an opportunity to inspect related components.

Volvo Injector Bolt

The Volvo injector bolt should be checked for:

• Thread damage

• Corrosion

• Wear

• Proper torque capability

Injector Seals

Seals should be replaced whenever wear or damage is observed.

Fuel System Connections

Inspect fuel lines and fittings for signs of leakage or deterioration.

Injector Condition

Evaluate injector health before reassembly to avoid future service interruptions.

Common Mistakes During Injector Cup Removal

Avoiding common errors improves repair quality and reliability.

Using Improvised Removal Methods

Improvised tools often increase the risk of damage.

Applying Excessive Force

Too much force may damage:

• Cylinder head surfaces

• Injector cup bores

• Adjacent components

Skipping Bore Inspection

Failure to inspect the bore may allow hidden damage to remain undetected.

Ignoring Service Procedures

Manufacturer procedures exist for a reason.

Following proper guidelines improves long-term results.

Volvo AdBlue Injector Replacement vs Injector Cup Service

These repairs involve different systems.

Understanding the Difference

Injector cups support the fuel injection system.

AdBlue injectors are part of the emissions control system.

Volvo AdBlue Injector Replacement

A Volvo AdBlue injector replacement typically addresses:

• DEF dosing issues

• SCR faults

• Emissions warnings

• Engine derate conditions

It does not resolve injector cup-related problems.

Volvo Injector Cup Removal Tool Checklist

Use this checklist before beginning service.

Service Checklist

• Confirm repair requirements

• Remove injectors safely

• Clean work surfaces thoroughly

• Inspect cylinder head condition

• Use the correct Volvo injector cup removal tool

• Follow manufacturer procedures

• Inspect injector cup bores carefully

• Replace worn components

• Verify sealing integrity

• Perform final operational checks

A structured process improves repair consistency and reliability.

The Ayb Mechatronics Approach to Injector Cup Service

What separates successful repairs from recurring problems?

The answer is proper diagnostics, specialized tools, and technical expertise.

Professional Inspection Procedures

At Ayb Mechatronics, injector cup evaluations focus on identifying the true cause of fuel system issues.

Precision Service Techniques

Using the correct Volvo injector cup removal tool and following proven procedures helps minimize risk and improve repair quality.

Supporting Long-Term Engine Reliability

The Ayb Mechatronics approach emphasizes:

• Accurate diagnostics

• Fuel system integrity

• Reduced downtime

• Improved reliability

• Cost-effective maintenance planning

These benefits help operators maximize engine performance and equipment availability.

FAQ

What is a Volvo injector cup removal tool?

A Volvo injector cup removal tool is a specialized service tool designed to safely extract injector cups from the cylinder head without causing damage.

Why is a dedicated injector cup removal tool necessary?

Injector cups are tightly fitted into the cylinder head. Specialized tools provide controlled extraction force and reduce the risk of component damage.

What are the signs of injector cup failure?

Common symptoms include fuel contamination, coolant contamination, white smoke, hard starting, and recurring fuel system issues.

Can injector cup problems cause a Volvo injector fault code?

Yes. Injector cup failures may affect combustion quality and fuel system performance, potentially triggering a Volvo injector fault code.

Are injector cups used in D12 and D13 Volvo engines?

Yes. Both D12 Volvo injector and D13 Volvo injector systems commonly utilize injector cups depending on engine configuration.

What should be inspected after injector cup removal?

Technicians should inspect the injector cup bore, cylinder head surfaces, injector condition, seals, and mounting hardware before reassembly.

Can I remove injector cups without a specialized tool?

While technically possible, it is not recommended. Improvised methods significantly increase the risk of damaging the cylinder head or injector cup bore.

Is Volvo AdBlue injector replacement related to injector cup service?

No. Volvo AdBlue injector replacement involves the emissions system, while injector cup service relates to the engine fuel injection system.
