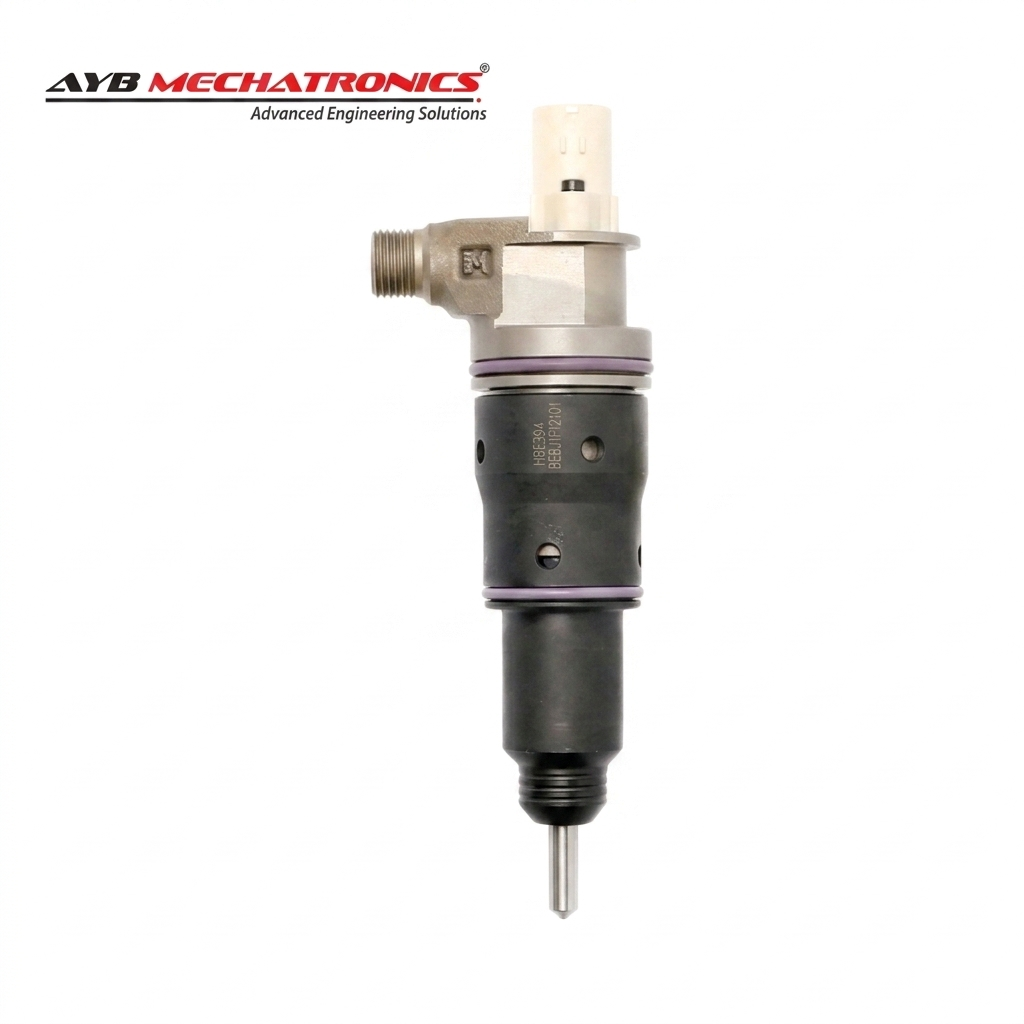

D13 Volvo Injector: Common Issues, Diagnostics, and Replacement Guide

Modern Volvo D13 engines are known for their efficiency, reliability, and performance in demanding commercial transportation applications. At the heart of this performance lies the D13 Volvo injector, a critical component responsible for delivering precise amounts of fuel into the combustion chamber at exactly the right moment.

When a D13 Volvo injector begins to fail, the consequences can range from reduced fuel economy and rough engine operation to increased emissions and costly downtime. Understanding how injectors work, how to diagnose problems, and when replacement becomes necessary can help fleet managers, diesel technicians, and truck owners avoid unexpected repairs and maintain optimal engine performance.

Understanding the D13 Volvo Injector System

The fuel injection system in Volvo D13 engines is engineered to deliver fuel under extremely high pressure. This precise fuel delivery ensures efficient combustion, improved power output, and compliance with modern emissions standards.

What Is a D13 Volvo Injector?

A D13 Volvo injector is an electronically controlled fuel injector that atomizes diesel fuel and delivers it directly into the engine cylinders. The injector communicates with the engine control module (ECM) to determine the exact timing and quantity of fuel injection.

This precision is essential because even minor variations in fuel delivery can affect engine performance and emissions.

How Volvo Injectors Work

Like other Volvo injectors, D13 injectors operate under high-pressure fuel conditions. The ECM continuously analyzes data from multiple sensors and adjusts injector operation accordingly.

The process generally includes:

• Fuel pressurization

• Electronic injector activation

• Precise fuel atomization

• Controlled combustion

• Emissions optimization

This advanced system helps maximize efficiency while reducing fuel consumption and harmful exhaust emissions.

D13 vs. D12 Volvo Injector Systems

Many technicians familiar with the D12 Volvo injector system notice significant differences when working on newer D13 engines.

Feature	D12 Volvo Injector	D13 Volvo Injector
Emissions Technology	Older generation	Advanced emissions control
Electronic Control	Less sophisticated	Highly integrated ECM control
Fuel Efficiency	Good	Improved
Diagnostic Capability	Basic	Advanced
Adaptation Requirements	Limited	More critical

Understanding these differences is important when diagnosing injector-related issues.

Common D13 Volvo Injector Problems

Like any high-precision component, injectors experience wear over time. Identifying problems early can prevent extensive engine damage.

Rough Idle and Misfires

One of the first signs of injector trouble is rough idling. A faulty injector may fail to deliver the correct fuel quantity, causing uneven combustion.

Real-world example: A fleet truck that previously operated smoothly may begin shaking noticeably while stopped at traffic lights or during engine warm-up.

Increased Fuel Consumption

When an injector leaks or delivers excess fuel, fuel economy often decreases.

Why does this happen? Because the engine compensates for inconsistent combustion by altering fuel delivery strategies, leading to higher overall consumption.

Hard Starting

Difficulty starting the engine, especially in colder conditions, can indicate injector performance issues.

If fuel atomization becomes poor, combustion efficiency decreases during startup.

Loss of Power

A failing injector can reduce cylinder efficiency, resulting in noticeable power loss during acceleration or while climbing grades.

Drivers often describe this as sluggish performance despite no obvious engine failure.

Understanding Volvo Injector Fault Codes

Modern Volvo engines provide valuable diagnostic information through electronic fault codes.

Common Volvo Injector Fault Code Symptoms

A Volvo injector fault code may appear when the ECM detects:

• Electrical circuit problems

• Injector response delays

• Fuel quantity deviations

• Cylinder balance issues

• Communication errors

These codes help technicians identify the affected injector and underlying cause.

Why Fault Codes Matter

Fault codes should not be ignored. While some issues may initially appear minor, prolonged operation can lead to:

• Increased fuel costs

• Engine damage

• Emissions failures

• Unexpected downtime

Professional Diagnostic Approach

A comprehensive diagnosis typically involves:

1. Reading fault codes

2. Reviewing freeze-frame data

3. Conducting cylinder balance tests

4. Inspecting fuel pressure values

5. Evaluating injector performance

This systematic approach reduces the risk of misdiagnosis.

How to Diagnose a Faulty D13 Volvo Injector

Proper diagnostics prevent unnecessary parts replacement and save valuable maintenance time.

Visual Inspection

Start with a thorough visual inspection.

Check for:

• Fuel leaks

• Damaged connectors

• Corroded wiring

• Loose connections

• Evidence of injector cup leakage

Even simple observations can reveal significant problems.

Cylinder Contribution Testing

Cylinder contribution tests help determine whether a specific injector is underperforming.

How does this work? The ECM evaluates the contribution of each cylinder and identifies abnormal combustion patterns.

Fuel System Analysis

Fuel quality and pressure play a major role in injector health.

Poor fuel quality may cause:

• Deposits

• Internal wear

• Injector sticking

• Reduced spray quality

Injector Bench Testing

When uncertainty remains, professional bench testing provides detailed injector performance data.

At Ayb Mechatronics, injector testing helps identify whether repair, recalibration, or replacement is the most cost-effective solution.

Volvo Injector Adaptation Explained

Many technicians overlook the importance of Volvo injector adaptation after replacement.

What Is Injector Adaptation?

Injector adaptation is the process of programming or calibrating injector characteristics within the ECM.

Since every injector has slight manufacturing variations, the ECM uses calibration values to optimize fuel delivery.

Why Is Adaptation Necessary?

Without proper adaptation:

• Fuel economy may suffer

• Engine performance may decline

• Fault codes may reappear

• Idle quality may worsen

This is why adaptation should always follow injector replacement when specified by Volvo procedures.

Signs Adaptation Was Not Performed Correctly

Common indicators include:

• Rough idle

• Excessive smoke

• Uneven power delivery

• Persistent diagnostic codes

Proper adaptation helps ensure the engine performs as intended.

D13 Volvo Injector Replacement Guide

Eventually, replacement becomes necessary when an injector reaches the end of its service life.

When Should You Replace an Injector?

Replacement may be required when:

• Internal wear exceeds limits

• Electrical failures occur

• Fuel leakage develops

• Calibration cannot be restored

Knowing when to replace rather than repair can prevent recurring issues.

Volvo Injector Bolt Considerations

The Volvo injector bolt is a critical fastening component that secures the injector assembly.

Technicians should always:

• Follow torque specifications

• Inspect threads

• Replace bolts when recommended

• Use proper tightening sequences

Ignoring these steps may compromise injector sealing.

Step-by-Step Replacement Overview

Although procedures vary by model year, the process generally includes:

1. Disconnect battery power

2. Remove engine covers

3. Access injector assembly

4. Remove fuel connections

5. Remove injector hold-down hardware

6. Extract injector

7. Install replacement injector

8. Perform adaptation and testing

Always consult manufacturer service procedures before beginning repairs.

Volvo Injector Cups and Related Components

Injector performance depends on more than the injector itself.

What Are Volvo Injector Cups?

Volvo injector cups are sleeves installed within the cylinder head that help isolate fuel passages and cooling systems.

They provide proper injector seating and sealing.

Symptoms of Injector Cup Failure

Common warning signs include:

• Coolant contamination

• Fuel contamination

• Hard starting

• White exhaust smoke

If left unresolved, cup failure can cause significant engine damage.

Volvo Injector Cup Removal Tool

Replacing injector cups typically requires a specialized Volvo injector cup removal tool.

Why is a dedicated tool necessary?

Because improper removal methods can damage the cylinder head and increase repair costs.

Professional technicians use manufacturer-approved tools to ensure safe extraction and installation.

Volvo AdBlue Injector Replacement vs Fuel Injector Replacement

Many operators confuse fuel injectors with emissions system injectors.

Understanding the Difference

A fuel injector delivers diesel fuel into the engine combustion chamber.

An AdBlue injector delivers diesel exhaust fluid (DEF) into the emissions system.

Volvo AdBlue Injector Replacement

A Volvo AdBlue injector replacement addresses emissions-related concerns rather than combustion issues.

Typical symptoms include:

• SCR system faults

• DEF dosing errors

• Emissions warnings

• Reduced engine performance due to derate conditions

Understanding the distinction helps avoid unnecessary repairs.

Common Mistakes When Working on Volvo Injectors

Even experienced technicians can make mistakes during injector service.

Skipping Diagnostics

Replacing injectors without confirming the root cause often wastes time and money.

Always verify whether the injector is truly responsible for the problem.

Ignoring Adaptation Procedures

As discussed earlier, injector adaptation is essential for proper engine operation.

Reusing Damaged Components

Reusing worn seals, bolts, or cups can lead to repeat failures.

Using Poor-Quality Parts

Low-quality replacement parts may initially appear cost-effective but often result in reduced reliability and additional downtime.

D13 Volvo Injector Maintenance Checklist

Use this practical checklist to extend injector lifespan and improve engine reliability.

Preventive Maintenance Checklist

• Inspect fuel filters regularly

• Use high-quality diesel fuel

• Monitor fuel pressure values

• Address fault codes promptly

• Perform scheduled engine diagnostics

• Check injector wiring and connectors

• Inspect for fuel leaks

• Verify injector adaptation after replacement

• Monitor fuel economy trends

• Follow manufacturer service intervals

Consistent maintenance is often less expensive than emergency repairs.

D13 Volvo Injector Replacement: Advantages and Disadvantages

Repair vs Replacement Comparison

Injector Repair Advantages

• Lower initial cost

• Reduced parts expense

• Faster turnaround in some cases

Injector Repair Disadvantages

• Not always possible

• May not resolve severe wear

• Performance depends on component condition

Injector Replacement Advantages

• Restores optimal performance

• Improves reliability

• Reduces risk of recurring failures

Injector Replacement Disadvantages

• Higher upfront investment

• Adaptation may be required

• Additional related components may need replacement

Choosing the right option depends on diagnostic findings and overall injector condition.

Why Professional Testing Matters

One area where many repair decisions go wrong is inaccurate diagnosis. A professional testing process can identify issues that are not visible during basic inspections.

At Ayb Mechatronics, specialized testing and technical expertise help determine whether a D13 Volvo injector requires cleaning, repair, calibration, or replacement. This data-driven approach minimizes unnecessary parts replacement and supports long-term reliability.

For fleets managing multiple vehicles, accurate injector assessment can significantly reduce maintenance costs and unplanned downtime.

FAQ

What are the most common D13 Volvo injector symptoms?

Common symptoms include rough idle, hard starting, reduced power, poor fuel economy, excessive smoke, and engine warning lights. Early diagnosis can prevent more expensive repairs.

How long does a D13 Volvo injector typically last?

Injector lifespan varies depending on fuel quality, maintenance practices, operating conditions, and engine load. Many injectors provide reliable service for hundreds of thousands of miles when properly maintained.

Can a Volvo injector fault code always identify a bad injector?

Not necessarily. A Volvo injector fault code indicates an abnormal condition, but wiring issues, fuel pressure problems, sensor failures, or ECM-related concerns may produce similar symptoms.

What is Volvo injector adaptation?

Volvo injector adaptation is a calibration process that allows the ECM to recognize and optimize injector performance characteristics after installation or service.

Do injector cups need replacement with injectors?

Not always. However, injector cups should be inspected whenever injectors are removed. Signs of leakage, contamination, or wear may indicate replacement is necessary.

What does a Volvo injector cup removal tool do?

A Volvo injector cup removal tool safely extracts injector cups from the cylinder head without damaging surrounding components. Proper tooling is strongly recommended.

Is Volvo AdBlue injector replacement the same as fuel injector replacement?

No. Fuel injectors deliver diesel fuel into the combustion chamber, while AdBlue injectors inject DEF fluid into the emissions system. They serve completely different functions.

Should I repair or replace a D13 Volvo injector?

The decision depends on diagnostic results. Minor issues may be repairable, while severe wear, electrical failure, or internal damage often requires replacement.
