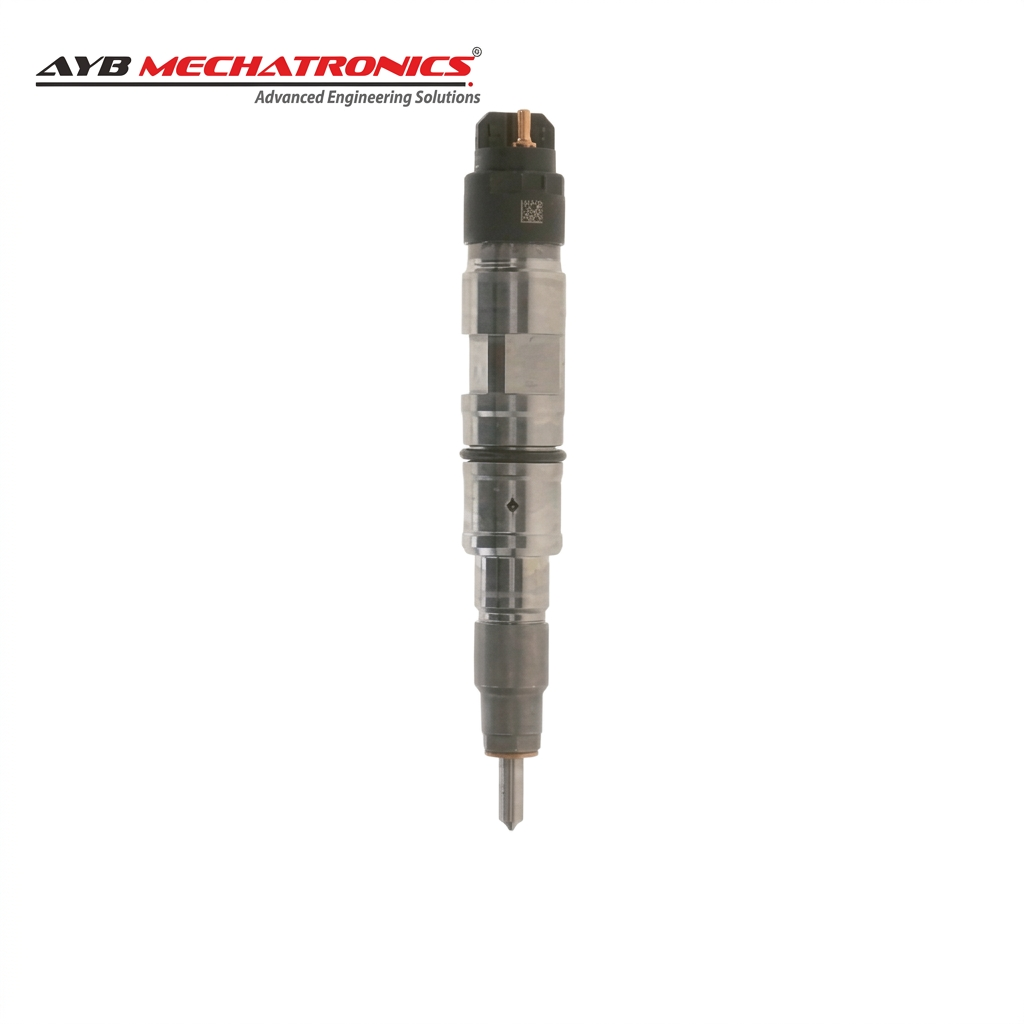

Ayb Mechatronics Guide to Understanding Volvo Injector Fault Codes

A Volvo injector fault code is often the first indication that something is wrong within the fuel injection system. While many drivers continue operating their trucks after a warning light appears, doing so can lead to reduced fuel efficiency, engine performance issues, and costly repairs. Understanding what these fault codes mean—and how to respond correctly—can help truck owners, fleet managers, and diesel technicians protect their engines and reduce downtime.

Modern Volvo engines rely on sophisticated electronic control systems that continuously monitor fuel delivery, injector performance, emissions output, and combustion efficiency. When an irregularity is detected, the engine control module (ECM) records a Volvo injector fault code and alerts the operator. However, fault codes are only the beginning of the diagnostic process. Proper troubleshooting is necessary to identify the root cause and determine the most effective solution.

At Ayb Mechatronics, injector diagnostics are based on technical expertise, professional testing, and data-driven analysis. This guide explains how injector fault codes work, what causes them, and how operators can resolve injector-related issues efficiently.

What Is a Volvo Injector Fault Code?

A fault code is a diagnostic message generated by the ECM when injector performance falls outside expected operating parameters.

How Volvo Engine Diagnostics Work

Modern Volvo injectors communicate continuously with the engine management system. The ECM monitors several performance indicators, including:

• Injector response times

• Fuel delivery accuracy

• Electrical circuit integrity

• Cylinder balance

• Combustion efficiency

When abnormal conditions occur, the system stores a diagnostic code to assist technicians during troubleshooting.

Why Fault Codes Are Important

Many operators ask: Why should I investigate a fault code if the engine still runs normally?

The answer is simple. Injector-related issues often begin gradually. A minor fault can evolve into a major repair if left unresolved. Early diagnosis helps prevent expensive component failures and unnecessary downtime.

What a Fault Code Can Tell You

A fault code may indicate:

• A specific injector problem

• Electrical communication issues

• Fuel pressure abnormalities

• Injector timing irregularities

• Cylinder performance concerns

However, a code rarely identifies the exact cause without further testing.

Common Causes of Volvo Injector Fault Codes

Several different issues can trigger a Volvo injector fault code, ranging from simple electrical problems to injector wear.

Injector Wear and Aging

Injectors operate under extreme pressure and temperature conditions. Over time, internal components wear, affecting fuel delivery precision.

Common wear-related issues include:

• Reduced spray quality

• Fuel leakage

• Slow injector response

• Uneven fuel distribution

As wear progresses, the ECM may detect performance deviations and generate fault codes.

Fuel Contamination

Fuel contamination remains one of the leading causes of injector-related problems.

Contaminants may include:

• Water

• Dirt particles

• Rust

• Microbial growth

• Poor-quality fuel

Why is contamination so damaging?

Because modern injectors have extremely tight tolerances. Even small contaminants can disrupt injector operation.

Electrical System Problems

Not every injector fault code indicates a defective injector.

Electrical issues frequently cause diagnostic alerts, including:

• Damaged wiring

• Loose connectors

• Corrosion

• Poor grounding

• Harness damage

A thorough electrical inspection is often essential before replacing components.

Fuel Pressure Problems

Incorrect fuel pressure can affect injector performance even when the injector itself is functioning properly.

Both low-pressure and high-pressure fuel system issues may trigger injector-related codes.

Symptoms Commonly Associated with Injector Fault Codes

Fault codes are often accompanied by noticeable engine performance changes.

Rough Idle

An uneven idle is one of the most common injector-related symptoms.

Drivers may notice:

• Increased vibration

• Engine shaking

• Unstable RPM levels

Reduced Fuel Economy

Fuel efficiency often declines when injectors fail to deliver fuel accurately.

How does this happen?

Incomplete combustion forces the engine to consume more fuel to maintain power output.

Hard Starting

Poor fuel atomization can make engine starting more difficult, particularly in colder temperatures.

Loss of Power

A faulty injector may reduce cylinder efficiency, resulting in sluggish acceleration and lower overall engine performance.

Real-world example: A truck that previously maintained highway speeds under load may begin struggling on moderate inclines.

How to Diagnose a Volvo Injector Fault Code

Proper diagnosis helps avoid unnecessary injector replacements and reduces repair costs.

Retrieve Stored Fault Codes

The first step is connecting diagnostic equipment and retrieving all active and stored fault codes.

Technicians should review both current and historical data.

Inspect Injector Wiring and Connectors

Electrical faults are common causes of injector warnings.

Check for:

• Damaged insulation

• Loose connectors

• Corrosion

• Pin damage

• Harness wear

Perform Cylinder Balance Testing

Cylinder contribution tests help identify combustion irregularities.

If one cylinder performs significantly differently from others, injector-related issues may be present.

Evaluate Fuel System Health

A complete fuel system inspection should include:

1. Fuel pressure testing

2. Fuel quality assessment

3. Filter inspection

4. Leak detection

5. Injector performance analysis

This systematic approach improves diagnostic accuracy.

Volvo Injector Adaptation and Fault Codes

Many recurring injector issues result from improper calibration after service.

What Is Volvo Injector Adaptation?

Volvo injector adaptation is a calibration process that allows the ECM to recognize and optimize injector-specific operating characteristics.

Each injector has slight manufacturing variations that must be accounted for electronically.

Why Adaptation Matters

Without proper adaptation:

• Fault codes may persist

• Fuel economy may decline

• Idle quality may suffer

• Performance issues may develop

When Adaptation Is Required

Adaptation is commonly performed after:

• Injector replacement

• Certain ECM updates

• Fuel system repairs

• Injector calibration procedures

Proper adaptation helps ensure maximum engine efficiency.

Injector Fault Codes in D12 and D13 Volvo Engines

Injector-related fault codes can occur across multiple Volvo engine platforms.

D12 Volvo Injector Fault Code Considerations

The D12 Volvo injector system is known for durability, but aging components can develop wear-related problems over time.

Common concerns include:

• Fuel delivery inconsistencies

• Electrical connector failures

• Internal injector wear

D13 Volvo Injector Fault Code Considerations

The D13 Volvo injector platform incorporates more advanced electronic controls and emissions integration.

While these systems improve efficiency, they also introduce additional diagnostic complexity.

Comparing D12 and D13 Injector Diagnostics

Feature	D12 Volvo Injector	D13 Volvo Injector
Diagnostic Complexity	Moderate	Advanced
Electronic Monitoring	Standard	Extensive
Emissions Integration	Lower	Higher
Calibration Requirements	Moderate	More Critical

Understanding engine-specific diagnostic strategies helps improve repair accuracy.

Volvo Injector Cups and Their Impact on Fault Codes

Not every injector fault originates within the injector itself.

What Are Volvo Injector Cups?

Volvo injector cups are sleeves installed within the cylinder head that provide sealing and positioning for injectors.

These components separate fuel and coolant passages.

Symptoms of Injector Cup Failure

Damaged injector cups may cause:

• Fuel contamination

• Coolant contamination

• White smoke

• Hard starting

• Persistent fault codes

Volvo Injector Cup Removal Tool

A specialized Volvo injector cup removal tool is often required during maintenance.

Why use a dedicated tool?

Because improper removal methods can damage the cylinder head and significantly increase repair costs.

When Injector Replacement Is Necessary

Not every injector fault code requires replacement, but some situations justify immediate action.

Signs an Injector Should Be Replaced

Replacement may be necessary when:

• Internal wear exceeds acceptable limits

• Electrical failures cannot be repaired

• Fuel leakage occurs

• Performance testing confirms injector failure

Volvo Injector Bolt Inspection

The Volvo injector bolt is a critical fastening component that secures the injector assembly.

Technicians should:

• Verify torque specifications

• Inspect thread condition

• Replace bolts when recommended

• Confirm proper installation procedures

Improper installation can contribute to recurring injector problems.

Repair vs Replacement Comparison

Option	Advantages	Disadvantages
Repair	Lower initial cost	Not suitable for all failures
Replacement	Restores full performance	Higher upfront investment

A professional injector evaluation helps determine the most cost-effective option.

Volvo AdBlue Injector Replacement vs Fuel Injector Fault Codes

Fuel injectors and emissions injectors perform different functions.

Understanding the Difference

Fuel injectors deliver diesel fuel into the combustion chamber.

AdBlue injectors deliver diesel exhaust fluid (DEF) into the SCR system.

Volvo AdBlue Injector Replacement

A Volvo AdBlue injector replacement typically addresses:

• DEF dosing issues

• SCR efficiency faults

• Emissions warnings

• Engine derate conditions

Although both systems generate diagnostic codes, they require different troubleshooting procedures.

Common Mistakes When Troubleshooting Injector Fault Codes

Avoiding common mistakes can save time and money.

Replacing Injectors Without Testing

A fault code does not automatically mean the injector is defective.

Always confirm the diagnosis through proper testing.

Ignoring Fuel Quality

Fuel contamination often contributes to recurring injector problems.

Overlooking Electrical Issues

Many injector-related warnings originate from wiring and connector faults rather than injector failure.

Skipping Adaptation Procedures

Failure to perform adaptation after injector replacement may result in recurring fault codes and reduced performance.

Volvo Injector Fault Code Checklist

Use this checklist when diagnosing injector-related issues.

Troubleshooting Checklist

• Retrieve all active and stored fault codes

• Inspect injector wiring and connectors

• Verify fuel pressure values

• Evaluate fuel quality

• Check fuel filters

• Perform cylinder balance testing

• Inspect injector cups

• Verify injector adaptation status

• Review maintenance history

• Conduct professional injector testing if necessary

Following a structured process helps ensure accurate diagnostics.

The Ayb Mechatronics Approach to Injector Diagnostics

What separates successful repairs from costly trial-and-error maintenance?

The answer is accurate diagnostics.

Advanced Injector Testing

At Ayb Mechatronics, injector evaluation focuses on identifying the true cause of performance issues rather than replacing components unnecessarily.

Data-Driven Analysis

Professional testing helps determine whether an injector requires:

• Calibration

• Cleaning

• Repair

• Replacement

This approach improves repair accuracy and reduces costs.

Supporting Long-Term Reliability

The Ayb Mechatronics methodology emphasizes:

• Accurate fault code interpretation

• Reliable diagnostics

• Improved fuel efficiency

• Reduced downtime

• Long-term engine reliability

These benefits help fleet operators and technicians make informed maintenance decisions.

FAQ

What does a Volvo injector fault code indicate?

A Volvo injector fault code indicates that the ECM has detected an abnormal condition affecting injector operation, fuel delivery, or related electronic systems.

Can a fault code confirm injector failure?

No. A fault code provides diagnostic direction, but further testing is usually required to identify the exact cause.

What are the most common causes of injector fault codes?

Common causes include injector wear, fuel contamination, wiring problems, connector corrosion, fuel pressure irregularities, and calibration issues.

What is Volvo injector adaptation?

Volvo injector adaptation is a calibration procedure that allows the ECM to optimize injector operation after replacement or service.

Can injector cups cause fault codes?

Yes. Damaged Volvo injector cups can contribute to fuel contamination, coolant contamination, combustion issues, and recurring fault codes.

What is a Volvo injector cup removal tool used for?

A Volvo injector cup removal tool safely removes injector cups during maintenance while reducing the risk of cylinder head damage.

Do D12 and D13 engines generate similar injector fault codes?

Yes. Both D12 Volvo injector and D13 Volvo injector systems can generate injector-related fault codes, although D13 engines generally use more advanced diagnostic systems.

Does Volvo AdBlue injector replacement solve injector fault codes?

Only if the fault originates within the SCR emissions system. Fuel injector fault codes and AdBlue injector faults are separate diagnostic categories.
